R34,R176=TRIMMER 100 OHM  (offset , turn for measure 0Vdc on speakers output)

R36,R195=TRIMMER 200 OHM  (bias setup =12mV on emitter resistors)

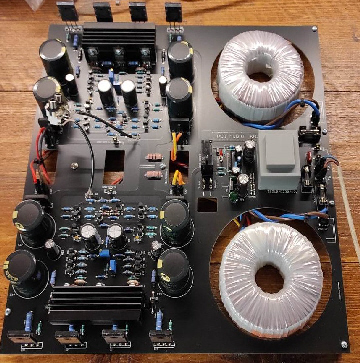

COMPLETE PCB AMPLIFIER BOARD

TWO SEPARATE AMPLIFIER AND A PROTECTION-ANTIBUM STAGE.

DUAL MONO CONCEPT WITH TWO TOROIDAL TRANSFORMERS .

POWER : 100W-8OHM , 200W-4OHM

DIMENSION: 355X335 , IT CAN FIT IN A HIFI2000 PESANTE -DISSIPANTE CABINET.

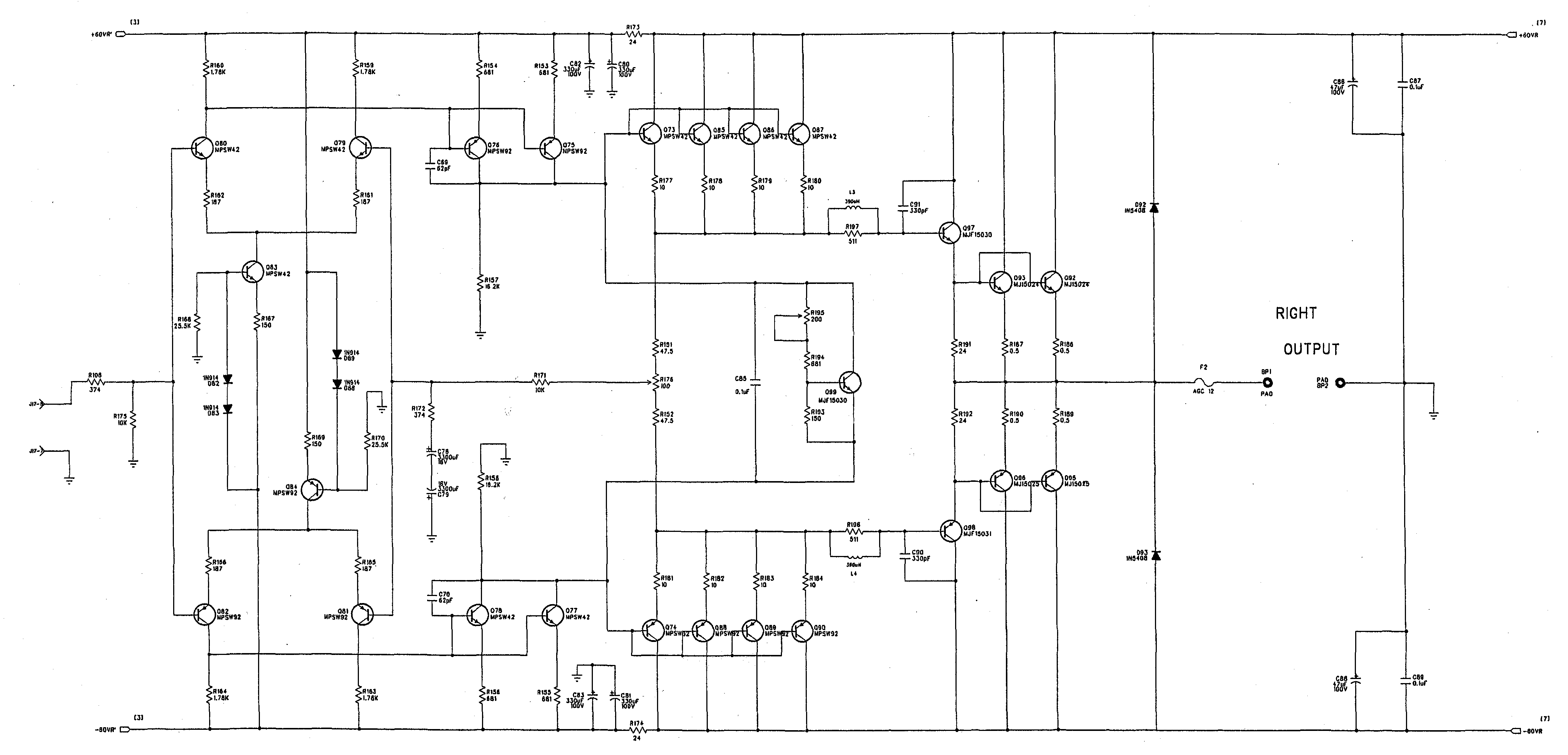

inspired by  krollo AMP

+

KR-300  AMPLIFIER
