PHONO STAGE

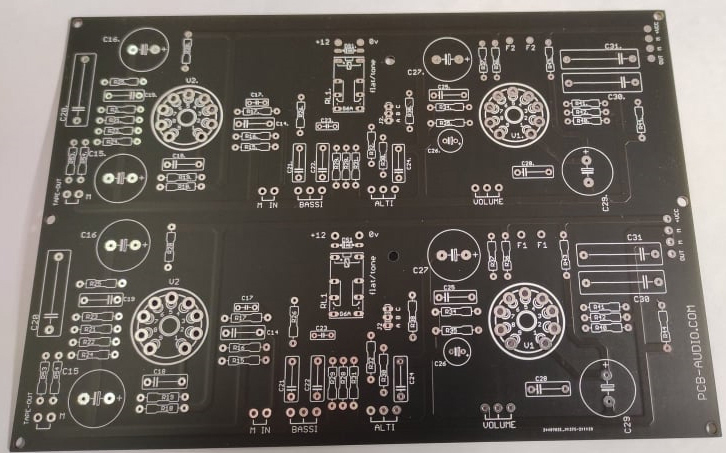

4X ECC83 TUBE PREAMPLIFIER WITH TONE CONTROL , TAPE OUT , SWITCH FOR TONE OR FLAT RELAY.

POWER SUPPLY WITH 190VDC 50mA , 12,6VDC 2Amper.

schematic by Nuova Elettronica

LX1140 N.E. TUBE PREAMPLIFIER
